T47 Standard by Argonaut Cycles and Chris King

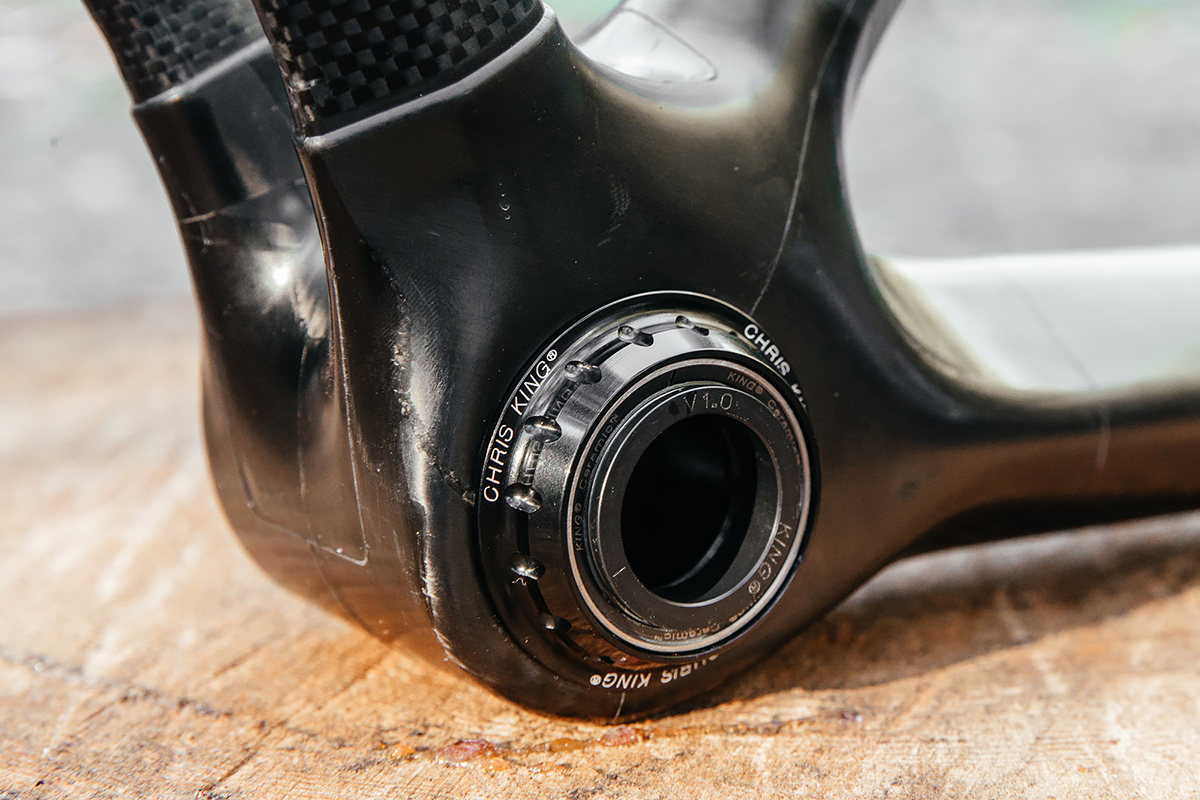

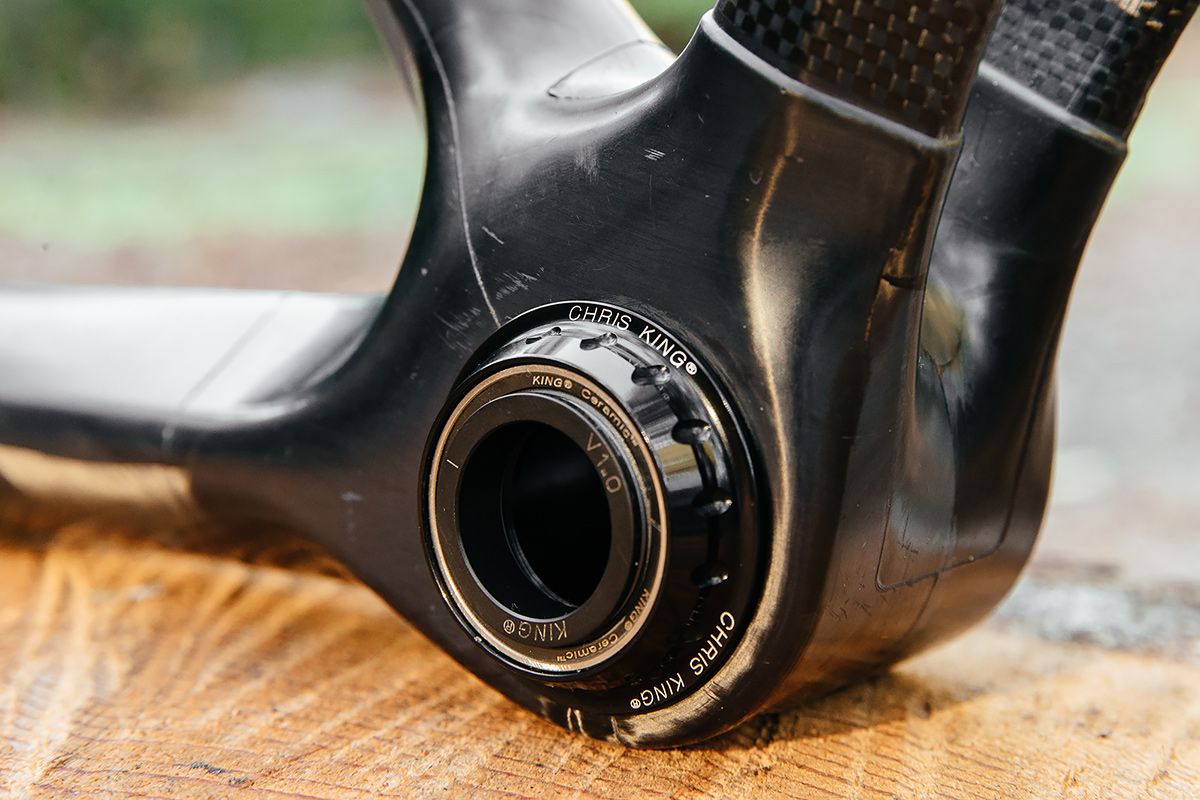

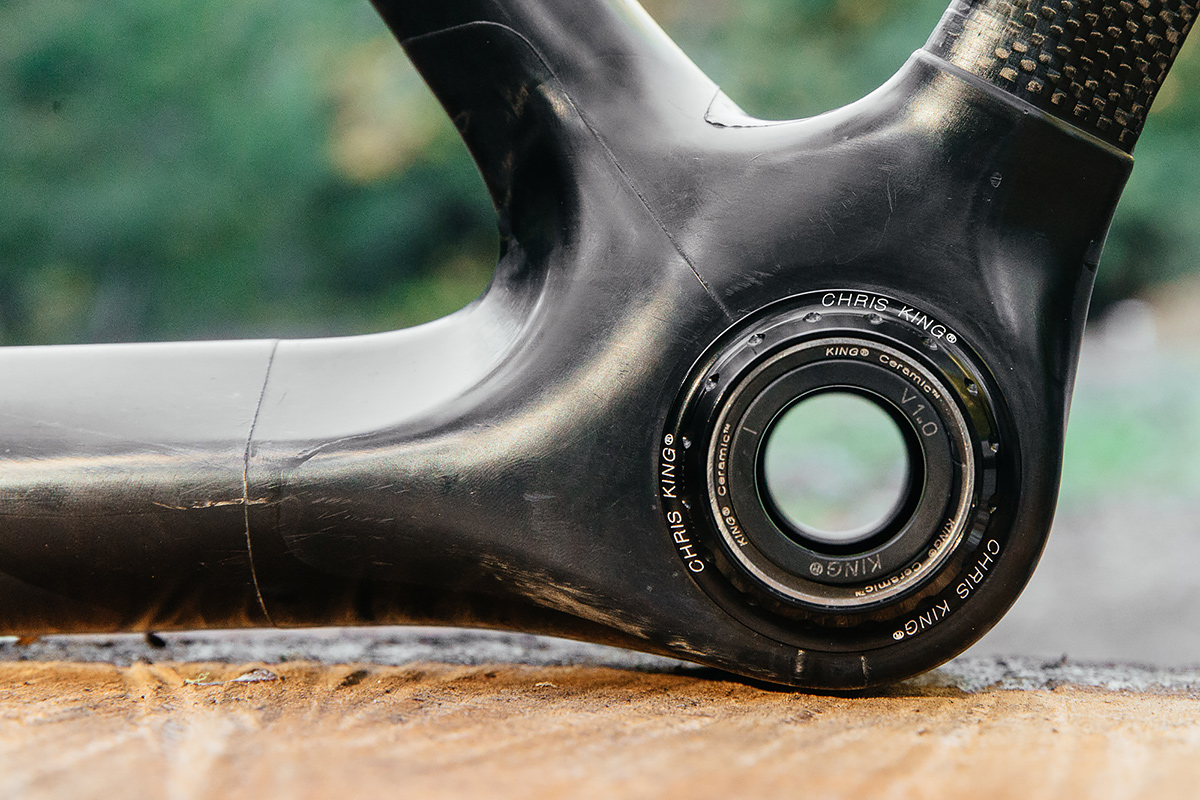

The new T47 BB Standard by Argonaut Cycles and Chris King

The creative and engineering minds at Argonaut Cycles and Chris King have joined forces on a new bottom bracket standard, conceived as a solution to the problems inherent to the PressFit system. here’s a preview of the new T47 standard.

The new T47 BB Standard by Argonaut Cycles and Chris King

From the press release: Designed in collaboration with Argonaut Cycles, the Thread Fit 30i and T47 Standard is a solution to the common issues surrounding the PressFit system. PressFit bottom brackets revolutionized crank compatibility years ago, but the standard is prone to creaking on rides and requires constant maintenance.

“The issue lies within the tolerance creep between frame manufacturers and component companies,” says Bob Scales, Marketing Manager for Chris King. “The threaded system removes the performance risks associated with the convenience of the press fit products and ultimately delivers a more reliable, high performance product to the rider.”

The new T47 BB Standard by Argonaut Cycles and Chris King

Argonaut Cycles saw an opportunity to add real value by pushing a new spec out to the industry and turned to Chris King to help develop a part that would still allow for an oversized bottom bracket shell and complete crank compatibility. The Thread Fit 30i is the product of this effort, and now comes standard on Argonaut Frames.

The 30i is not another in a long line of constantly changing standards, but a solution to a pre-existing problem. Other domestic component companies are working in collaboration with Chris King to create a new standard which will be called T47. T47 will be an open standard in 2016 for all builders and component companies to use.

The new T47 BB Standard by Argonaut Cycles and Chris King

Ben Farver, owner of Argonaut, comments: “The PF30 is convenient to build a frame around allowing customers to use any crank on the market. The issue, however, is with a press fit system, you have to hold a super tight tolerance in both the frame and bottom bracket. Often these tolerances work against each other.

All in all, a PressFit system is the wrong style of engagement in a bottom bracket.

Threads are really the way to go, but a larger bearing is still ideal. The traditional threaded BSA is great from a durability standpoint, but it limits a customer’s crank options. As a frame manufacturer I don’t want to have to talk someone into buying one of my bikes while at the same time talking them out of a crank they might want to use.

The new T47 BB Standard by Argonaut Cycles and Chris King

“My production manager and I were talking about all the challenges of PF30 one day, and thought, why don’t we just make a new standard that solves both problems? I called Jay Sycip, who runs the Cielo arm of Chris King, and we discussed the true consumer benefit of creating a threaded spec that leverages the larger bearing used in the PF30.

We agreed that it would yield a much higher interface success rate, and more importantly, a better ride. So, this project is an attempt to solve a problem the entire bike industry is suffering from, and lead the way to a better, lasting standard.”

The new T47 BB Standard by Argonaut Cycles and Chris King

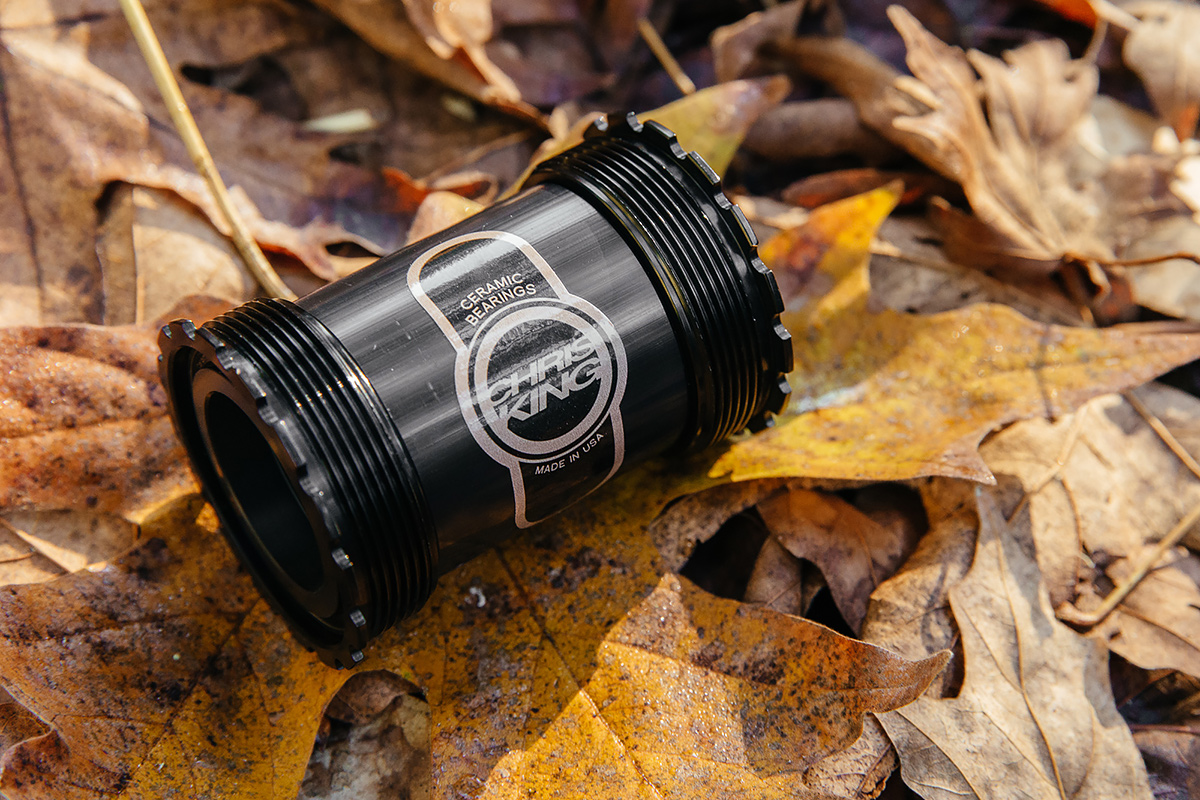

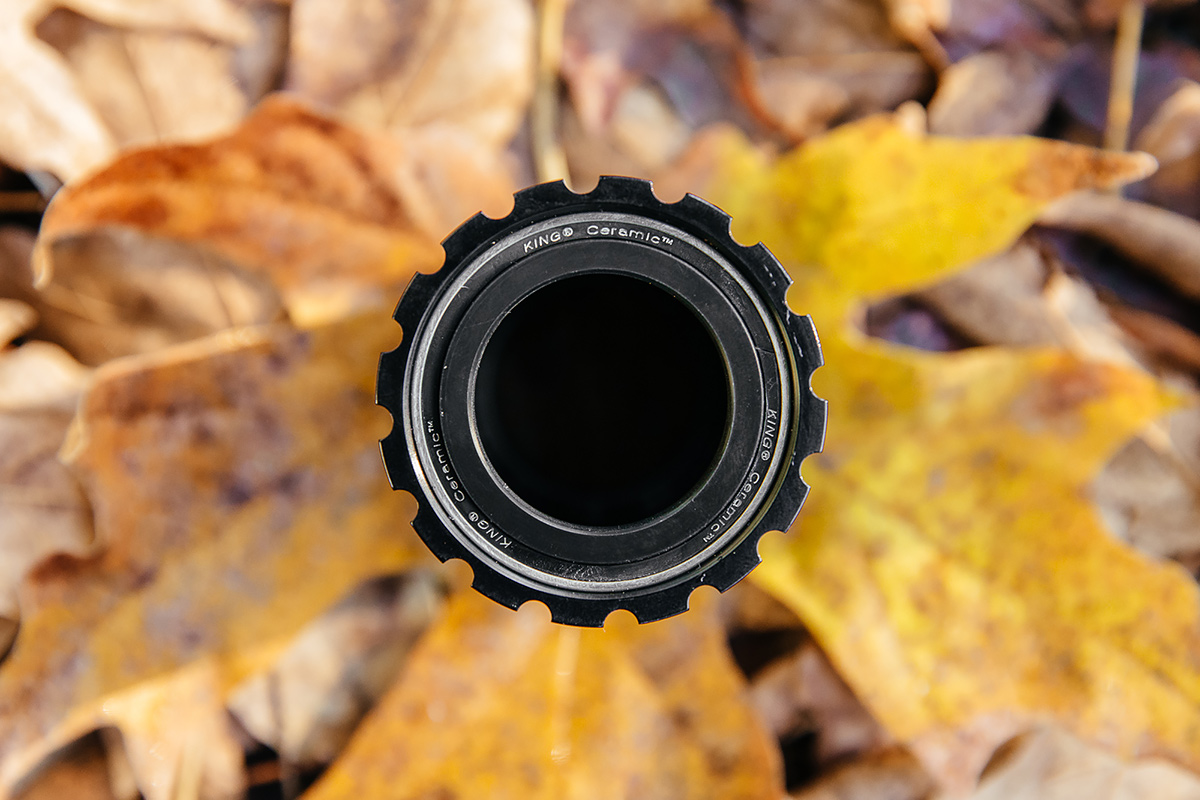

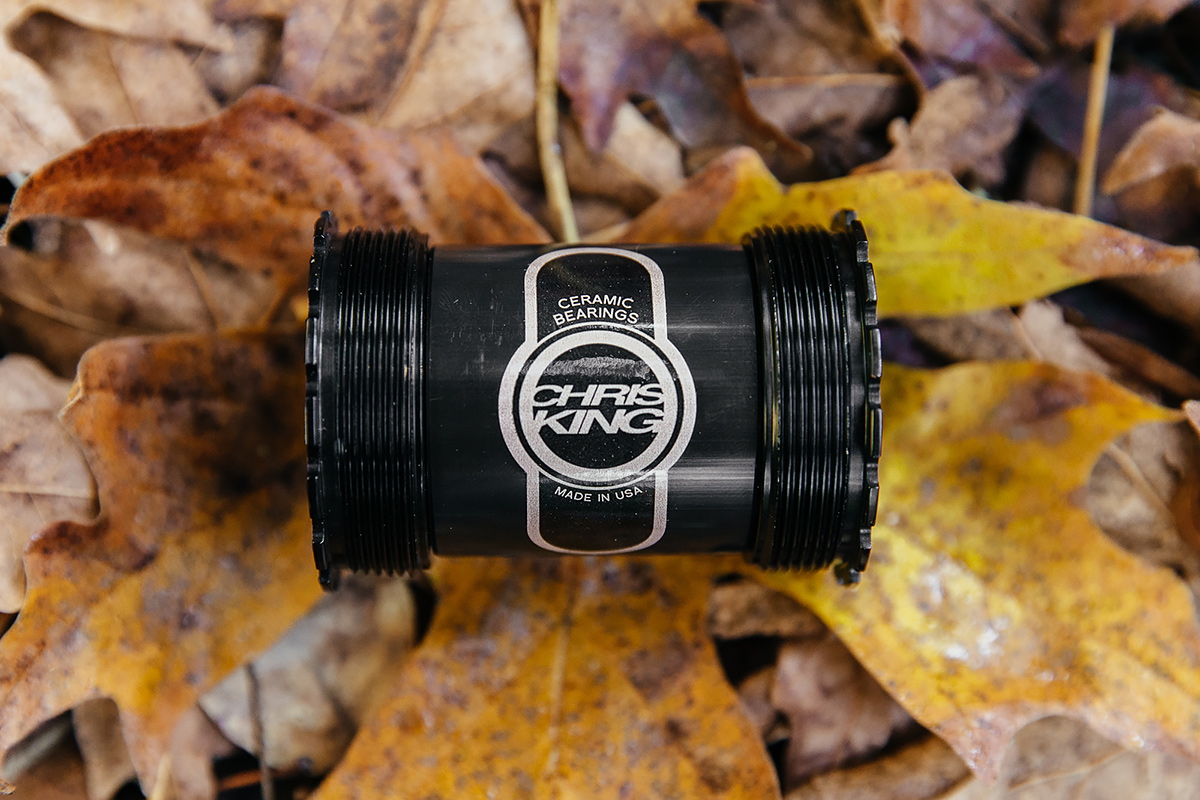

Chris King Thread Fit 30i Features:
• Engineered, manufactured and assembled in Portland, Oregon USA
• Legendary made-in-house bearings
• Easily serviceable with our integrated grease injection tool

Be sure to watch the Vimeo about the new standard for a deeper insight.

Argonaut Cycles Website | Facebook | Instagram

Thanks to John Watson for the photography.
